Substrate

At Nanosystems JP Inc., we understand the importance of versatile and high-quality substrate requirements for your projects. Catering to diverse needs, we are proud to offer a broad range of substrate materials suitable for a myriad of applications.

Available Substrates:

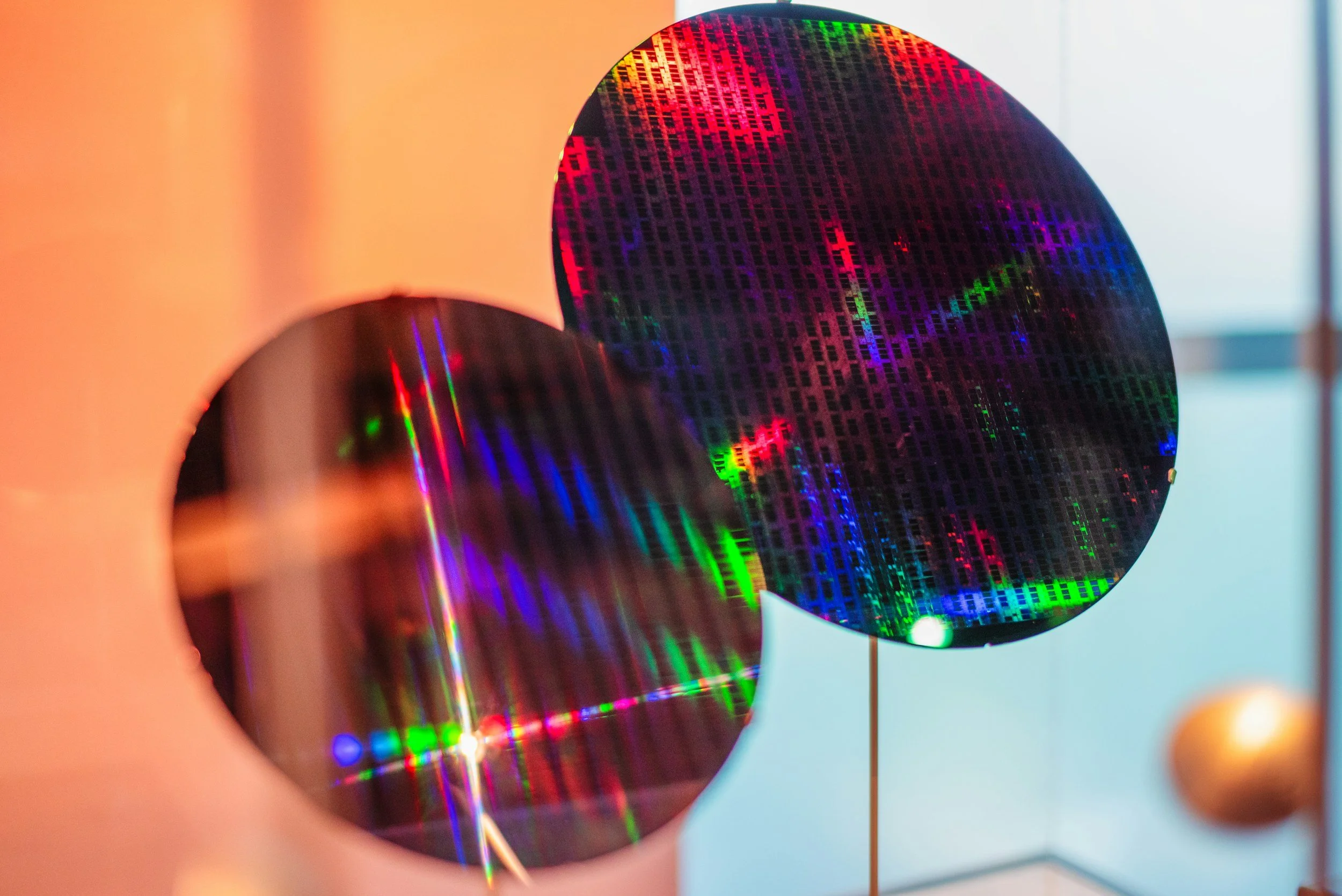

Silicon Wafers:

  • Type & Crystal Orientation: P-Type (Boron), N-Type (Phosphorus/Antimony), (100) & (111)

  • Diameters: 2", 4", 6", 8", 12"

  • Thickness: Various thicknesses are available

  • Surface: Single side Polished (SSP), Double-side polished (DSP), Unpolished

  • Grade: Prime, Test, Mechanical

  • Resistivity: Low (< 0.01 Ω-cm), Medium (1-10 Ω-cm), High (> 10 Ω-cm)

  • Flatness: Standard, Semi-standard, Notched

  • Oxidation: Thermal oxide Silicon wafer, Wet/Dry oxidized

  • Thin film-deposited (coated) wafers are available in lots of 25, 50, and 100 wafers.

Glass Substrates:

  • Standard Glass Wafers

  • BK7 Glass: Renowned for its optical applications and mechanical stability

  • Soda Lime Glass: Popular for its ease of fabrication, cost-effectiveness, and versatility for broad applications.

  • Eagle X Glass: Superior quality and clarity for specialized applications. Also known for its exceptional durability.


Large-size Glass Substrate Processing

At Nanosystems JP Inc., we empower your projects by offering processing on glass substrates of extensive sizes. We also support processing on glass substrates in sizes up to 370 mm x 470 mm and even 550 mm x 650 mm. We ensure precise and accurate processing to meet your specifications.

Quartz Wafers

  • Offering excellent optical and electronic properties and high-temperature resilience.High purity and thermally stable, perfect for precision projects.

    Fused Silica Substrates

  • Optimal for UV to IR applications due to its high transmission properties.low thermal expansion.

    Sapphire Wafers:

  • Known for its hardness, optimal for scratch-resistant applications, and its resistance to both chemical and radiation damage. and broad transparency range.

    SiC (Silicon Carbide)

  • Offers high-temperature resistance, high thermal conductivity, and high-frequency applications.

    SOI (Silicon on Insulator) Wafer

  • Prominent in electronics for its ability to reduce parasitic device capacitance. Ideal for advanced semiconductor applications.

    Piezoelectric Substrates

LiNbO3 (Lithium Niobate; LN) & LiTaO3 (Lithium Tantalate; LT)

  • Essential for SAW (Surface Acoustic Wave) filters, crucial for telecommunications applications.

Glassy Carbon

  • Provides a unique combination of properties such as chemical inertness, high-temperature stability, and electrical conductivity.

    Compound Semiconductor/Epi-Wafers

    InP (Indium Phosphide) Single Crystal Wafers

  • for high-speed electronics.

    GaAs (Gallium Arsenide) Single Crystal Substrates

  • Ideal for LED, Laser applications,  and various photonics applications

    GaN (Gallium Nitride)

  • high-frequency and power applications.

    InGaAs (Indium Gallium Arsenide)

  •   for photodetectors and solar cells.

Whether you're seeking substrates for advanced research, device fabrication, or any other niche application, either for R&D, prototyping, or volume production, we have you covered with our comprehensive range of options. Reach out today to discuss your substrate needs and how we can assist in making your projects a success.
